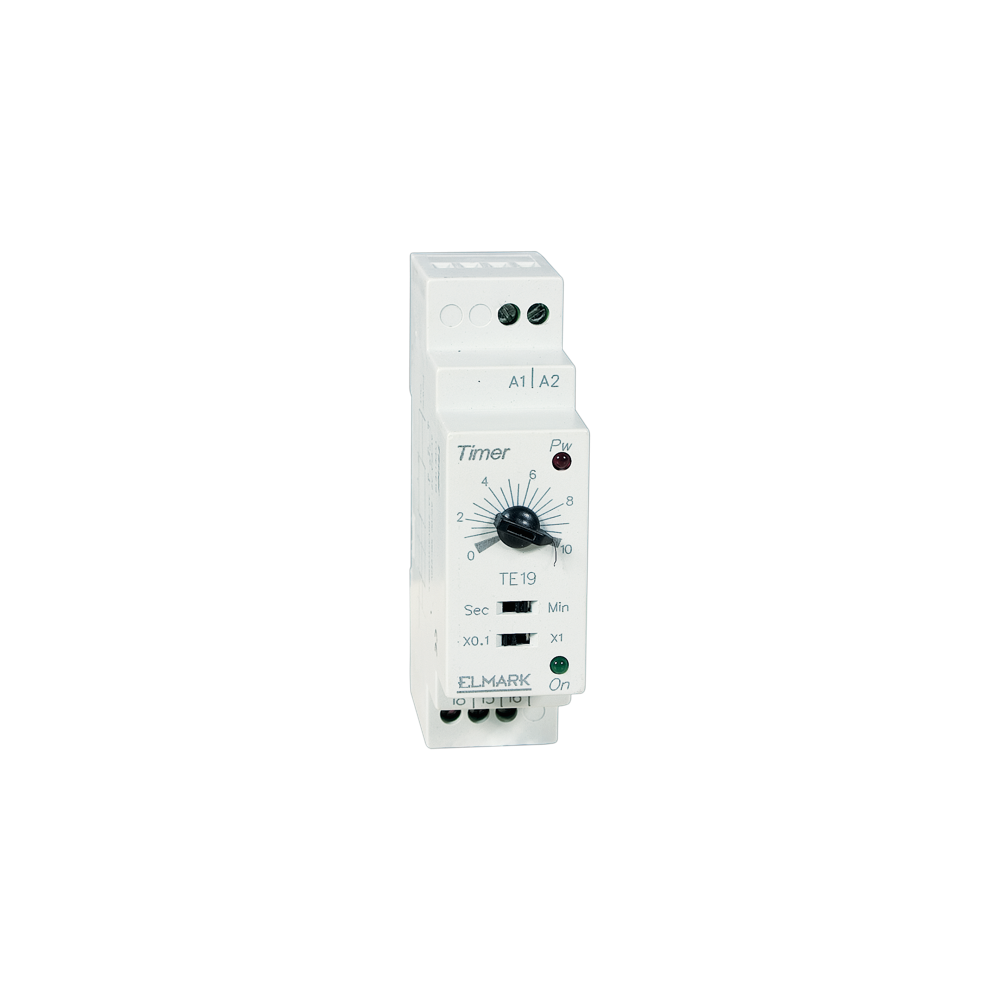

РЕЛЕ ЗА ВРЕМЕ "ЗВЕЗДА-ТРИЪГЪЛНИК" ТЕ 19

The time relay is manufactured under the most modern methods of qualitative and reliable materials. The timer is adjusted for DIN-rail mounting. It is used to provide reliable and safe time hold at ﾓstar/deltaﾔ starters and it is used for setting fixed time intervals. Programming is done through selection of the time unit seconds or minutes and rate x 0.1 or x1 by the slide switches, and then selection of a value from the timer knob from 0 to 10. Whenever timer circuit receives a signal, it executes the set cycle and then stops until a new signal is available. It gives possibility for time adjustment for motor unwinding in star up to 600s and time change to delta according to the consumerﾒs need.
