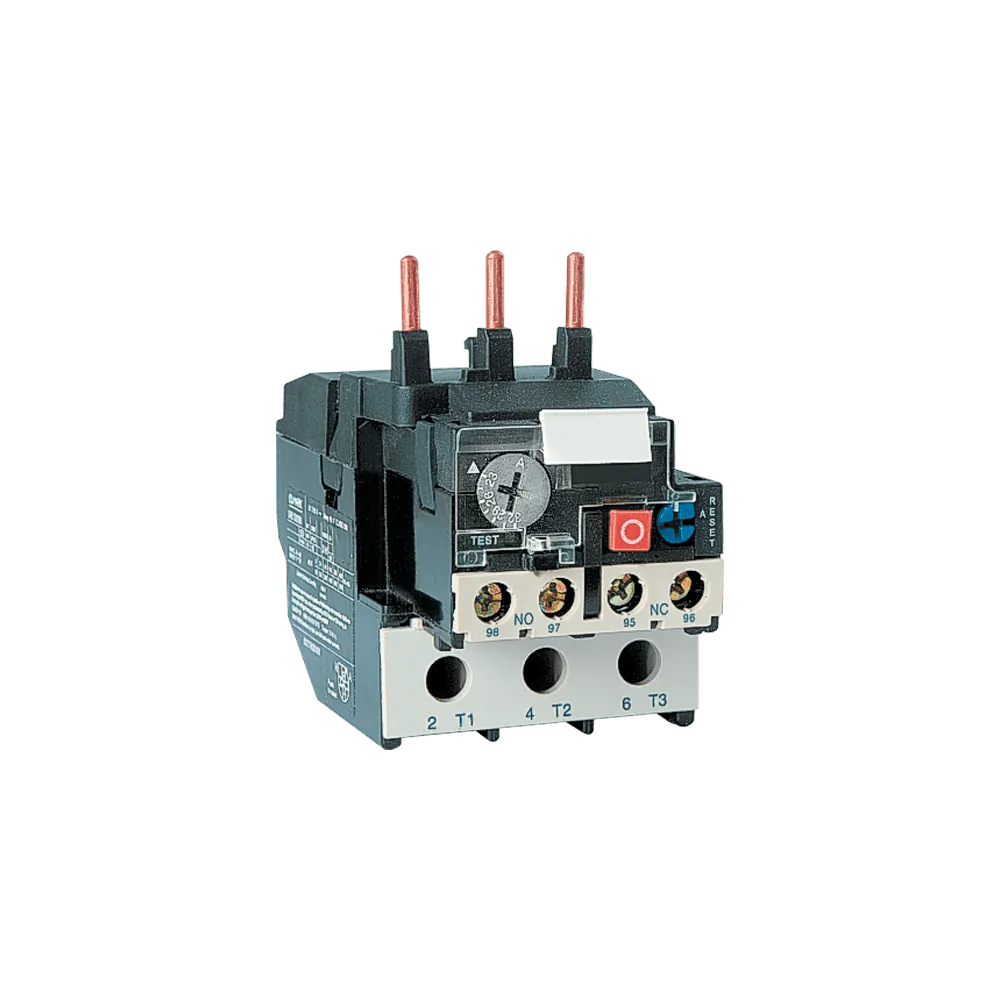

Thermal relays LT2-E3355 30-40A

Technical characteristics of LT2-E:
- Rated operating current: 0,10 up to 93А
- Rated operating voltage : up to 690V АС;50/60Hz
- Insulation voltage: >690V
- Impulse voltage withstand: 6000V
- Mechanical wear resistance (number of cycles): ≥10000000
- Electrical wear resistance (number of cycles): ≥1000000
- Ambient temperature: -10° to 65ºС
- Maximum altitude: up to 2000m

Advantages:
- Indication for protection activating
- Choice of protection restoration method
- Allows adjustment of the operation range
- Allows operation at higher frequency
- High reliability of the current parameters
- Increase the effectiveness and prolongs the term of operation.

Functions:
- For protection of induction motors from overload or overheat
- To prevent the motor from operation at unusual temperature conditions

Applications:
- Industry
- Building construction

Моunting: To the terminals of the contactor and it is additionally clamped to its frame through a pin

Standard: EN60947-1; EN60947-4-1; LVD; EMC
