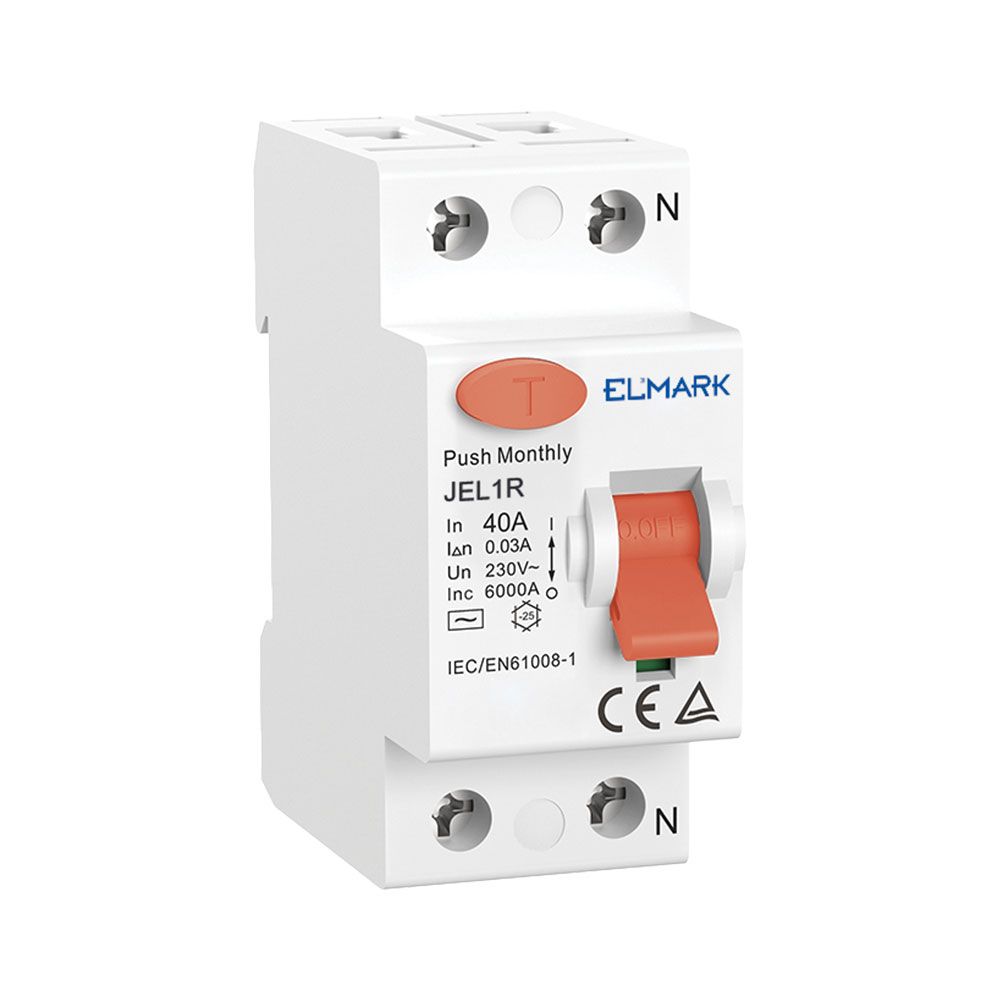

RESIDUAL CURRENT DEVICE JEL1R 6kA 2P 25A/30mA

FUNCTIONS
• Versatile Current Range: Supports current ratings from 16A to 63A, accommodating
various electrical setups.
• IEC 61008-1 Compliance: Adheres to international standards for residual current circuit
breakers, ensuring dependable performance.
• Effective Leakage Detection: Protects against hazardous leakage currents, enhancing overall electrical safety.
• Robust Construction: Crafted from high-quality materials for durability and long-term
reliability.
• Simple Installation: Designed for easy integration into existing electrical systems with straightforward mounting.
• Clear Indicator Display: Features visible ON/ OFF and trip indicators for efficient monitoring and quick fault diagnosis.

APPLICATIONS
• Residential electrical installations
• Office buildings
• Retail outlets

CONNECTING
• Power supply busbar (only for bipolar)
• Flexible or rigid conductors with corresponding section

TECHNICAL DATA
• Rated operating voltage: 230/240V; 50/60 Hz
• Rated current: according to the table
• Type of protection: AC
• Number of poles: 2P(1P+N)
• Responsiveness: 30; 300mA
• Time delay until break: <0.1s
• Rated impulse withstand voltage (1.2/50)(Uimp): 4000V
• Dielectric test voltage for 1min: 2kV
• Rated breaking capacity: 6000A
• Electrical wear resistance (number of cycles):≥2000
• Mechanical wear resistance (number ofcycles): ≥4000
• Max. terminal size for cable: 25mm2
• Max .tightening torque: 2,5N.m
• IP code: IP>20
• Ambient temperature: -10°C + 40°C
• Installation altitude: up to 2000m
• Connection: From top and bottom

MOUNTING
• On DIN-rail
• Mounting position: vertical
