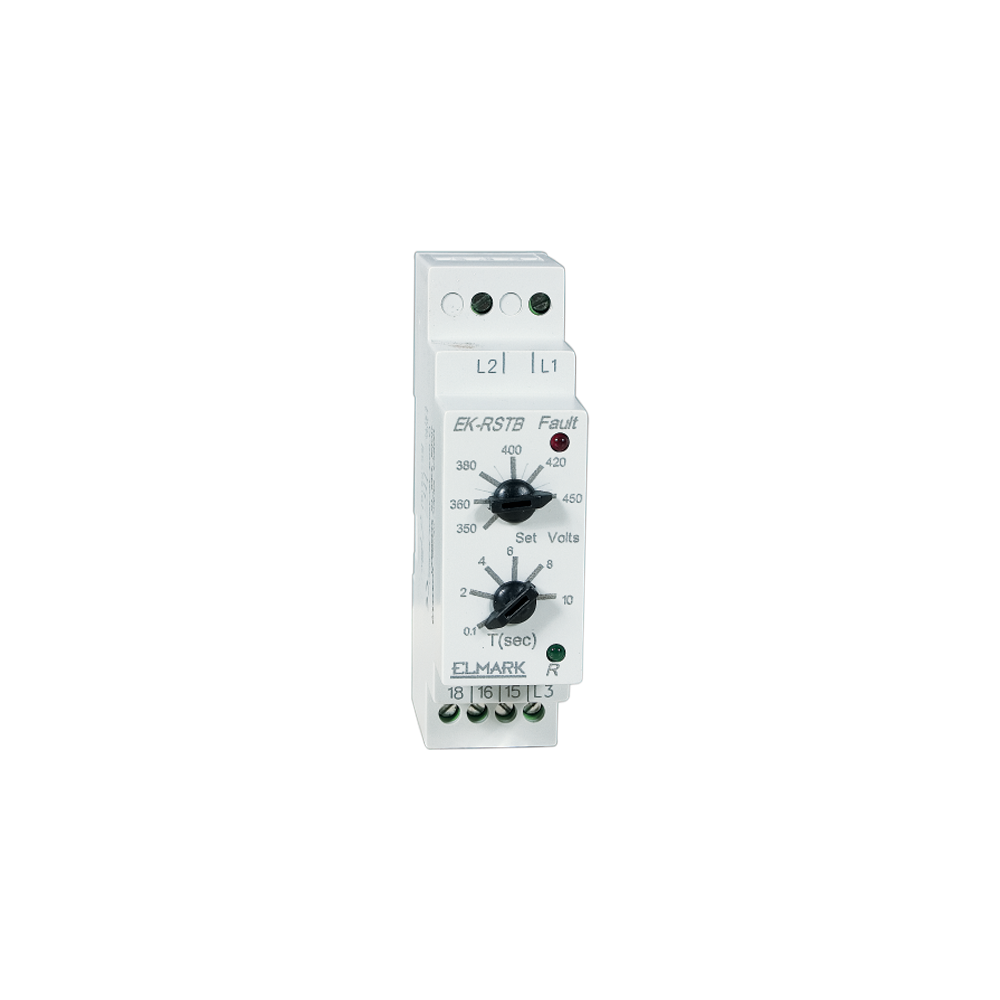

Phases sequence indicator EK-RSTB

The device is to be mounted on DIN-rail. It is used for control and indication of the presence, sequence and quality of the phases. The device indicates the following fault: lack of one or several phases; change in the sequence of the phases; lowering of the power supplying voltage: under 10%; increasing of the power supplying voltage: over 10%; phase asymmetry of the power supplying voltage: ﾱ10%. In the presence of one of the conditions above a relay starts operating in the device which breaks the controlling circuit. The time between fault indication and outlet relay switching on can be adjusted in order to prevent unwilling stops at very short breaks. When the voltage is back to normal limits, the device receives energy indication lights according to the hysteresis values. At phase sequence fault the device operates immediately
