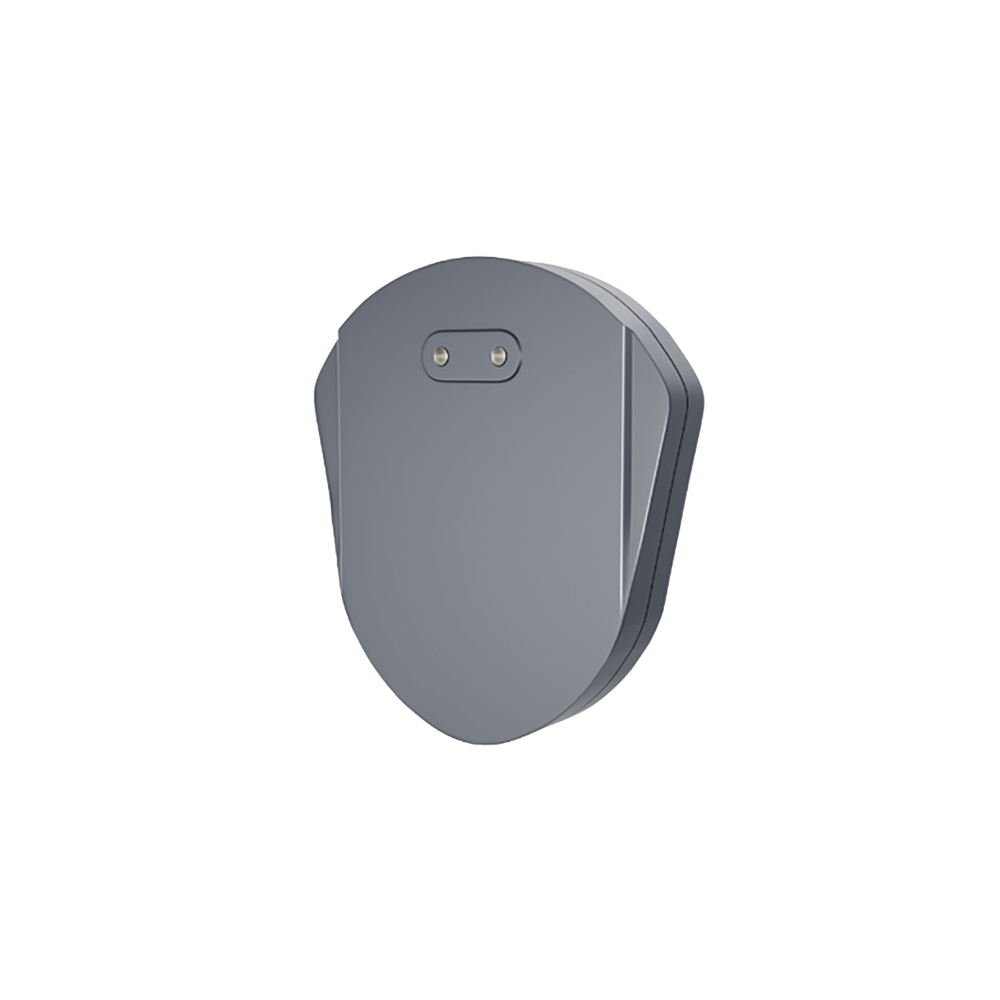

EL-R02 anti-smashing radar for barier EL-BG007
In stock
(see where)
SKU: 195113
Available in stock: 15 - the delivery time is 1 to 2 days.
For orders over stock - the delivery time is from 30 to 40 days.
BGN 106.08 /54,24 €
BGN 106.08 /54,24 €
-
+
Characteristics
Type Product
Anti-Smashing Radar
Input voltage
12V DC
Nominal current
150mA
Working frequency
24GHz-24.5GHz
Detection distance
1-6 meters ( +-0.1 meters)
Temperature range
-40°C +85°C
Dimension
105x118x21mm
IP code
IP67
Warranty
3+0 years
Product category
B
Brand
ELMARK
Description
EL-R02 is anti-collision radar, suitable only for straight (boom) arm barrier gate. The anti-smashing radar is installed on the barrier gate box perpendicular to the direction of the lane (or installed on the column next to the box). The installation height is recommended to be 0.6M from the bottom edge of the radar to the ground, and 15-25CM from the gate lever on the left and right.
 TECHNICAL DATA
• Scope of application: Straight bar gate
• Horizontal beam: < 30°
 • Vertical beam: < 17°
