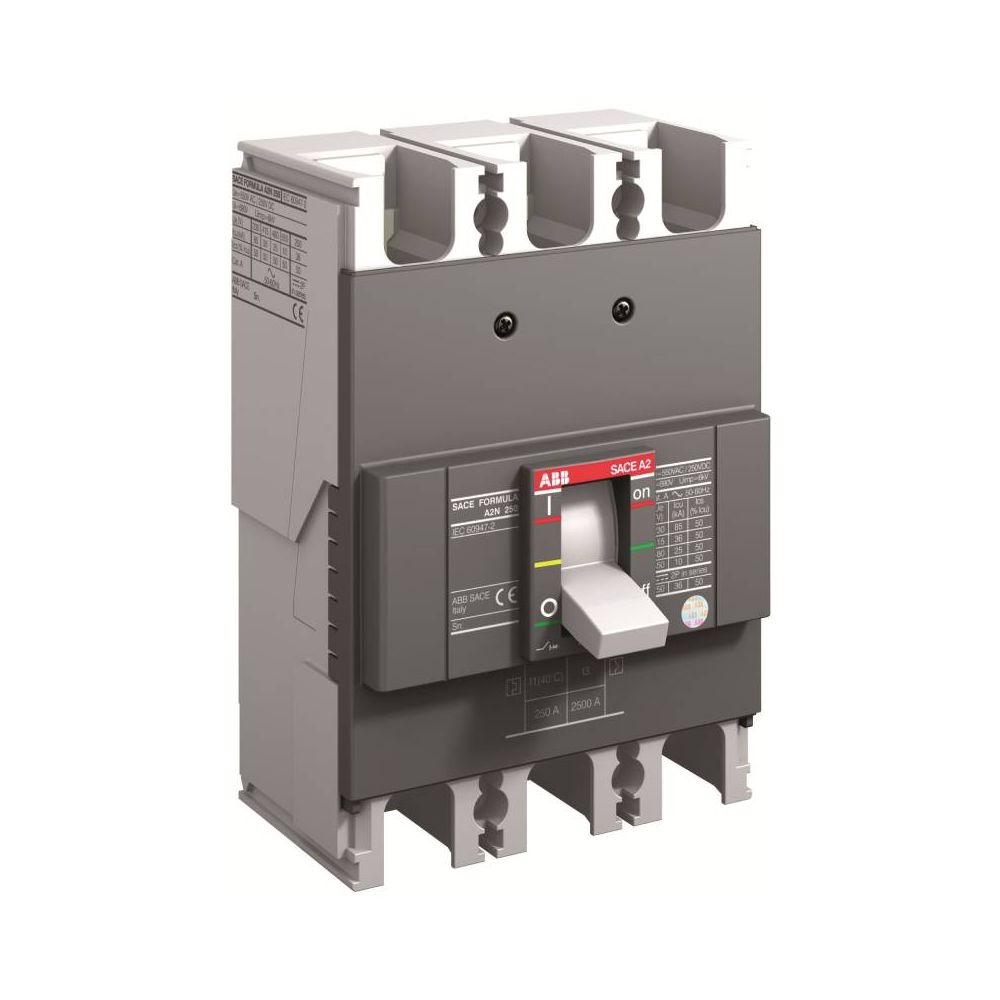

ABB Molded case circuit breaker A2C 250 TMF 250-2500 3p F F 250 A
In stock
(see where)
SKU: M518080
Available in stock: 6
BGN 284.20
-
+
Characteristics
Type Product
Molded case circuit breaker
Series
Formula DSA
Number of poles
3
Model
A2C 250 TMF 250-2500 3p F F
Rated current
Main Circuit 250 A
Electrical Durability
4000 cycle
Mechanical Durability
10000 cycle
Rated Impulse Voltage
6 kV
Rated Insulation Voltage
690 V
Rated Service S/C Capacity
(240 V AC) 25 kA (380 V AC) 12.5 kA (415 V AC) 12.5 kA (440 V AC) 10 kA (480 V AC) 9 kA (500 V AC) 4 kA (250 V DC) 2 Poles in Series 12.5 kA
Rated Uninterrupted Curr.
250 A
Release
TMF
Rated Ult. S/C Capacity
(240 V AC) 50 kA (380 V AC) 25 kA (415 V AC) 25 kA (440 V AC) 20 kA (480 V AC) 18 kA (500 V AC) 8 kA (250 V DC) 2 Poles in Series 25 kA
S/C Performance Level
C
Dimensions
150 x 60 x 105
Manufacturer
ABB
