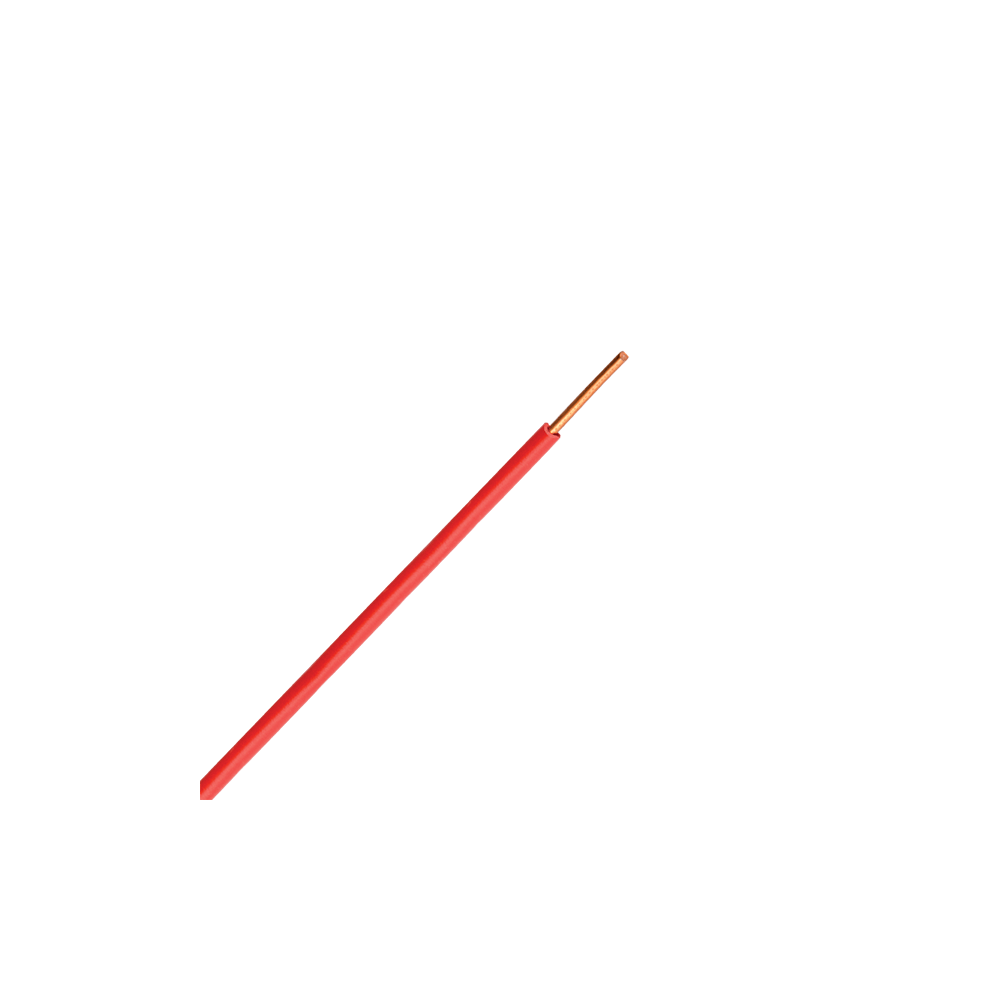

H07V-U 4mm2
Available in stock: 100 - the delivery time is 1 to 2 days.
For fixed installation in lighting networks, electric power installations, wiring of electrical switchboards, machines and equipment.
TECHNICAL DATA
• Ambient temperature: -30°C to+50°C
• Temperature of laying: min. -5°C
• Max. operating temperature: +70°C
• Nominal voltage Uo/U:
- H05V-U 300/500 V
- H07V-U 450/750 V
• Test voltage:
- H05V-U 2000 V
- H07V-U 2500 V
CONSTRUCTION
• Solid Cu wires cl. 1 acc. to DIN VDE 0295, IEC 60228
• Insulation: PVC compound
• Insulation colour:
- Blue: available cross sections up 0.5 to 10 mm²
- Red: available cross sections up 0.5 to 10 mm²
- Black: available cross sections up 0.5 to 10 mm²
- White: available cross sections up 0.5 to 4 mm²
- Yellow-Green: available cross sections up 0.5 to 10 mm²
- Brown: available cross sections up 0.5 to 10 mm²
