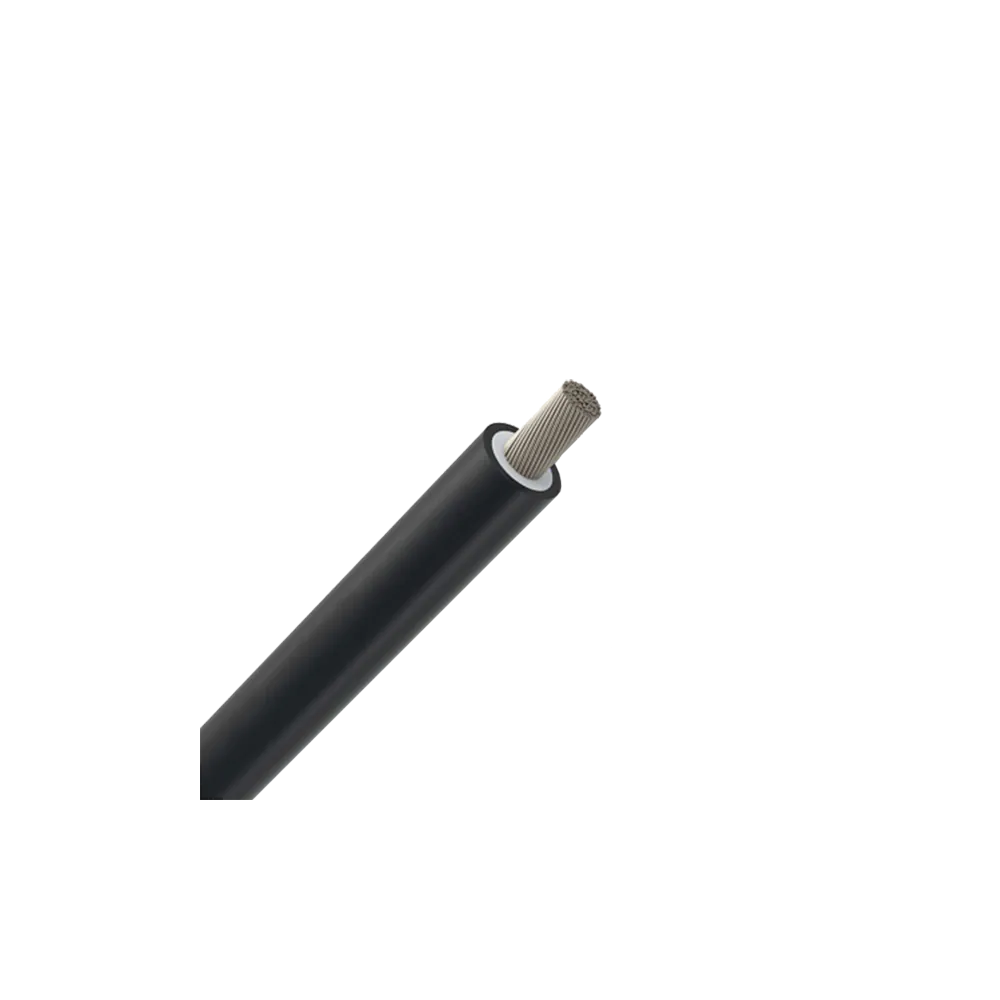

Solar cable H1Z2Z2-K 0.6/1kV 1x6.00mm2 black
In stock
(see where)
SKU: M411080/BL
Available in stock: 2052 - the delivery time is 3 to 5 days.
For orders over stock - the delivery time is from 30 to 40 days.
BGN 2.27 /1,16 €
BGN 2.27 /1,16 €
Oversized product *
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
-
+
Characteristics
Color
Black
Fire resistance
Dca S1a, d2, a1/EN 60332-1-2/250°C/5sec. (max.)
Number of cores
1
Section of the conductor
6mm²
Rated voltage
АС 1,0/1,0 kV; DC 1,5/1,5 kV
Number of conductros
75x0,30mm
Insulation
Diameter/Thickness: 4.5mm/0.7mm
Resistance
Conductor: 3,39Ω/km, Insulation: 500МΩ/km
Type of material
Conductor: Tinned copper Class 5/Insulation: Halogen-free compound
Roll length
100m
Outer diameter
6.2mm
Temperature range
-40°C +90°C
Warranty
5+2 years
Total weight (kg/km)
78
Product category
C
Brand
ELMARK
Description
APPLICATION
They are specifically designed for the construction of photovoltage systems. H1Z2Z2-K solar cables have good wear resistance, extreme flexibility, UV protection and do not support combustion. They are also halogen-free, water and oil resistant.
• Minimum bending radius during laying: 5xØ of cable
CERTIFICATION
• Declaration of performance (DoP)
• TUV Certificate
• CE and EN Certificates
