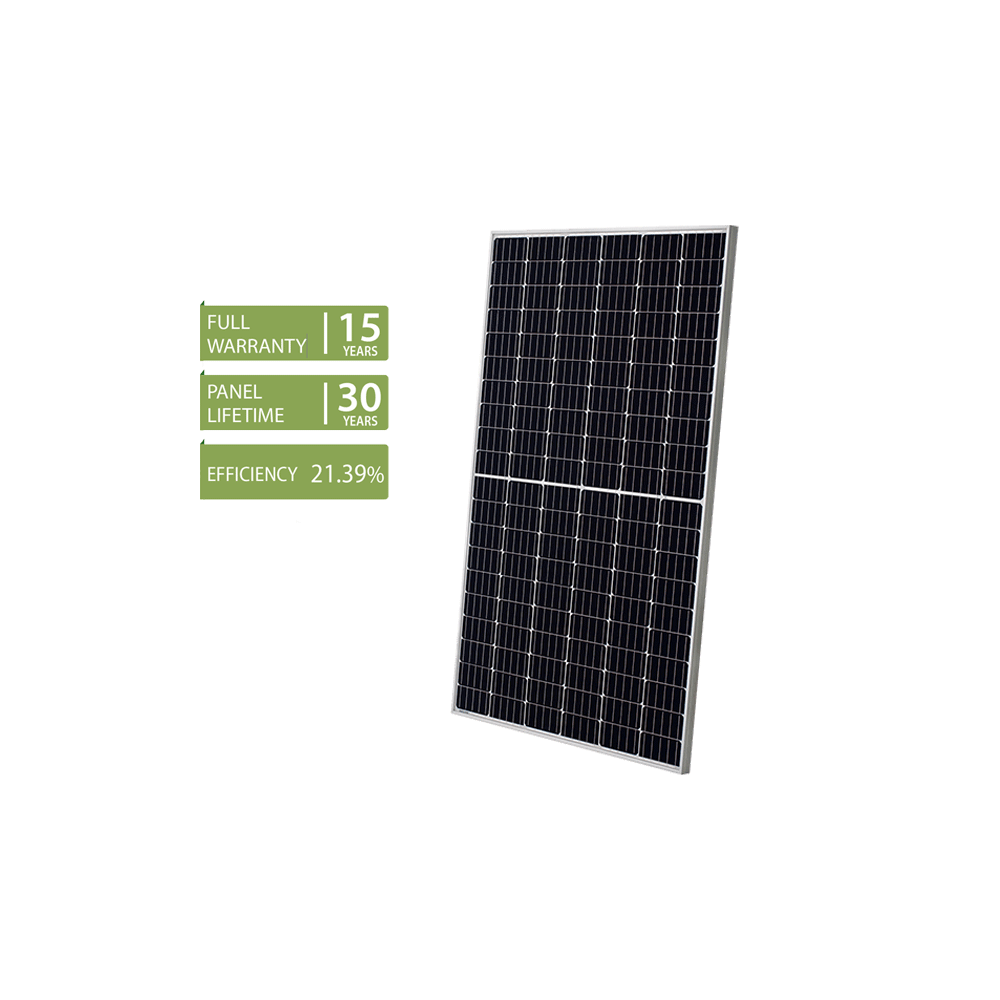

Monocrystalline half-cut solar panel 465W

Half-cell high-efficiency solar panel is cutting cells one divides into two, it could reduce thermal resistance, improve output power 5-10W. It could meet 1500V whole system voltage design demand and reduce whole system cost 10%. In comparison to full solar cell modules, this one cells sub-fissure, power attenuation and sunshine occlusion is more lower and excellent high temperature character. It is the best choice for large ground power station projects.

TEMPERATURE CHARACTERISTICS

 • Nominal Module Operating Temperature (NMOT): 45°C±2°C

 • Temp. Voc coefficient (TK Voc): -0,32% /°C

• Temp. Isc coefficient (TK Isc): 0,05% /°С

• Temp. Coefficient of Pmax (TK Pmax): -0,37%/°C

• Ambient temperature: -40°C+85°C

Note: the specifications are obtained under the standard test conditions (STCs): 1000 W/ m² solar radiation, 1,5 air mass and 25 ° C cell temperature.

CERTIFICATES

• CE

• DEKRA

• PID-FREE

• IEC61215/ 61730/ 61701/ 62716

This product meets all the technical requirements set by the European Union for the construction of solar systems.
